Application Of Sn Plating On Zinc Alloy
2020-05-29 09:22
Sn plating is normally done to impart solderability to a variety of base metal substrates. It is a silvery, blue-white metal that is ductile, solderable, and covers very well. The solderability of tin can be affected by the substrate,
Sn plating is normally done to impart solderability to a variety of base metal substrates. It is a silvery, blue-white metal that is ductile, solderable, and covers very well. The solderability of tin can be affected by the substrate, since several metals (including brass and zinc) tend to react with and migrate into the tin forming relatively non-solderable intermetallic layers. Zinc will migrate into the tin and severely limit the shelf life of the finished parts. This migration can be mitigated by the common practice of applying an undercoat of copper or nickel, or a combination of copper with a flash of nickel through which the zinc cannot migrate.
Tin has a typical thickness of .0011”. In general, matte tin has better solderability but bright tin is specified more because of its appearance. Tin does not tarnish easily, making it a good choice as a decorative finish.
Classic cases：
This product uses the following processing methods
1.NO BURRS PERMITTED
2.PIATING:
UNDERLAYER:3-5 μm Ni OVER 8-12 μm Cu
TOPLAYER: 5-10 μm Sn
SURFACE AREA:650 Imm2
3.MATERIAL:ZAMAK 3 (ASTM B86)
VOLUME 4032mm3, WEIGHT 27g.
4.EJECTOR PIN MARKS RECESSED, 0.10MAX
5.DIMENSIONS WITHIN OVAL ARE INSPECTION DIMENSIONS.
6.SIGNIFICANT CHARACTERISTIC FOR PROCESS CAPAABILITY AND PROCESS CONTROL.
For customers' requirements, first of all, we have carried out technical analysis and technological improvement. The product is also in the efforts of colleagues in various departments, the customer is very satisfied, with our long-term cooperation, began mass production!
 |
 |
 |
 |

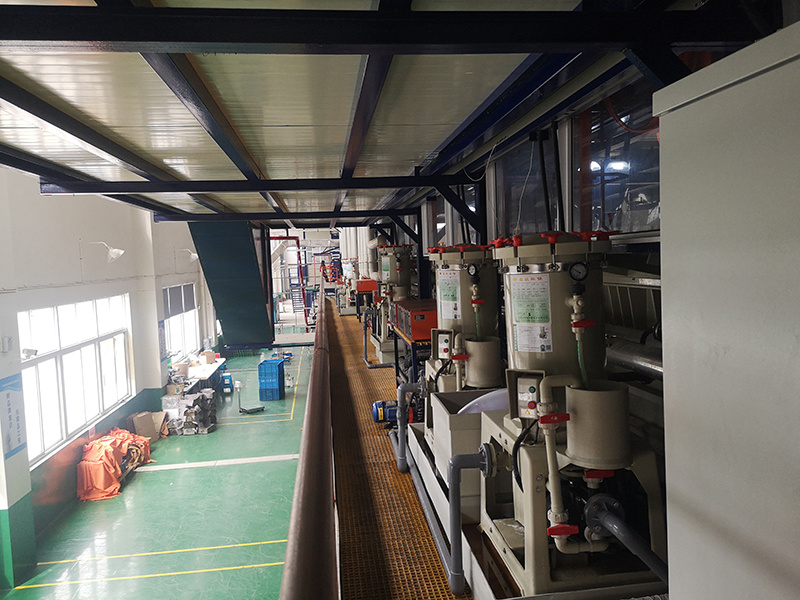

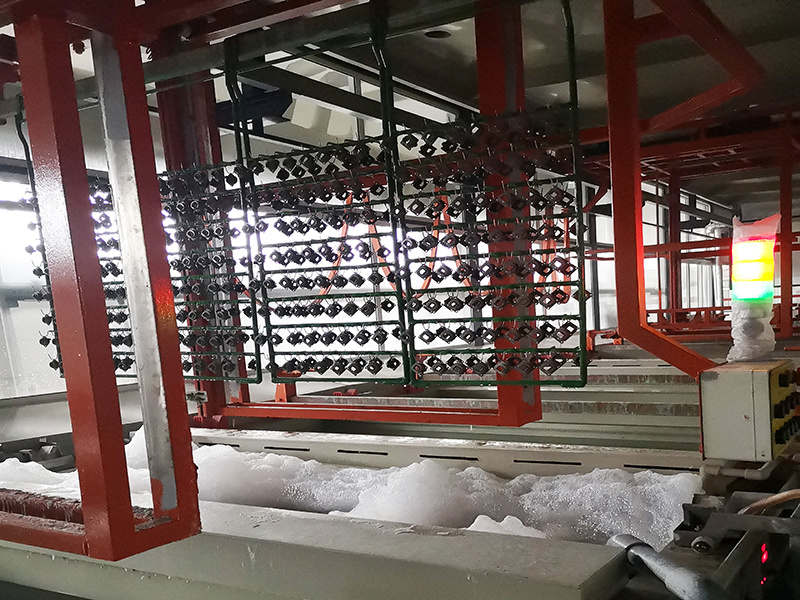

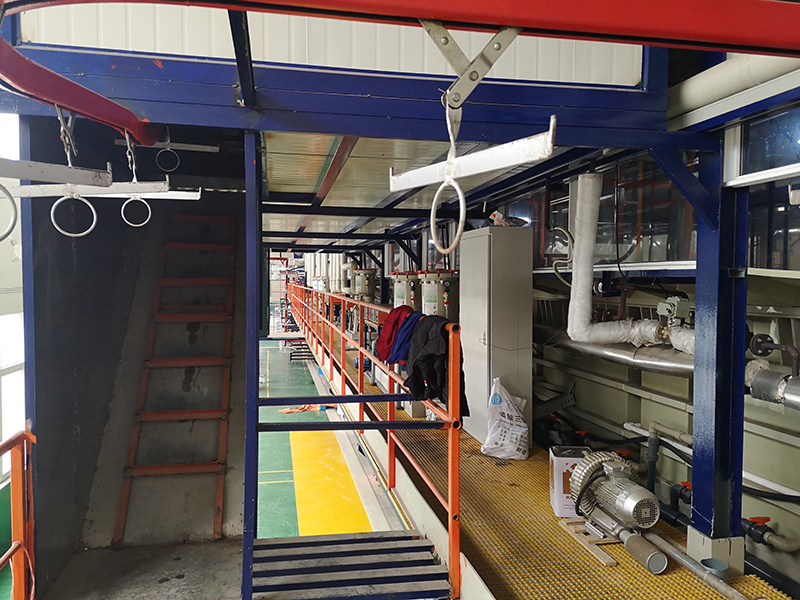

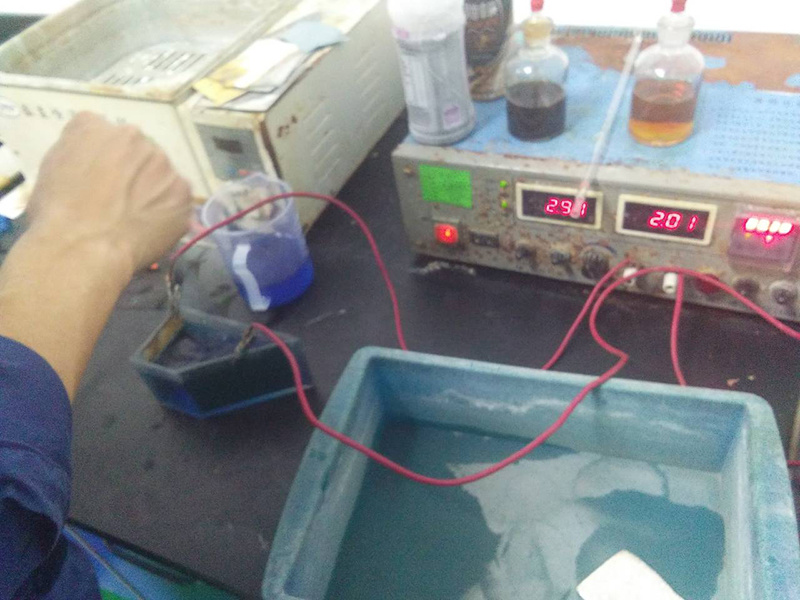

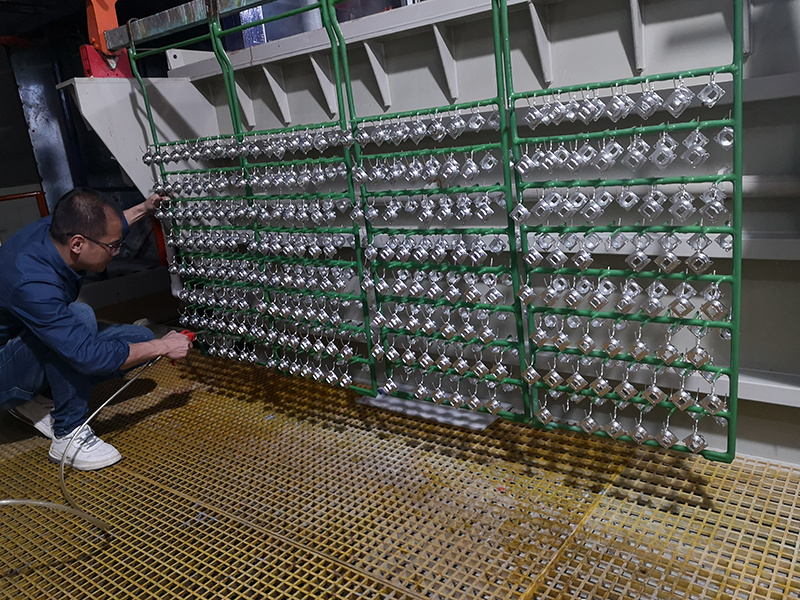

| Chemcal analysis | Hanging plating | Hanging plating | rolling plating |
 |
 |
 |
 |
| Film thickness detection at each step | drying | Salt spray test | batch |
Other news
Gravity casting series mold design and product processing
2023-09-14 12:41

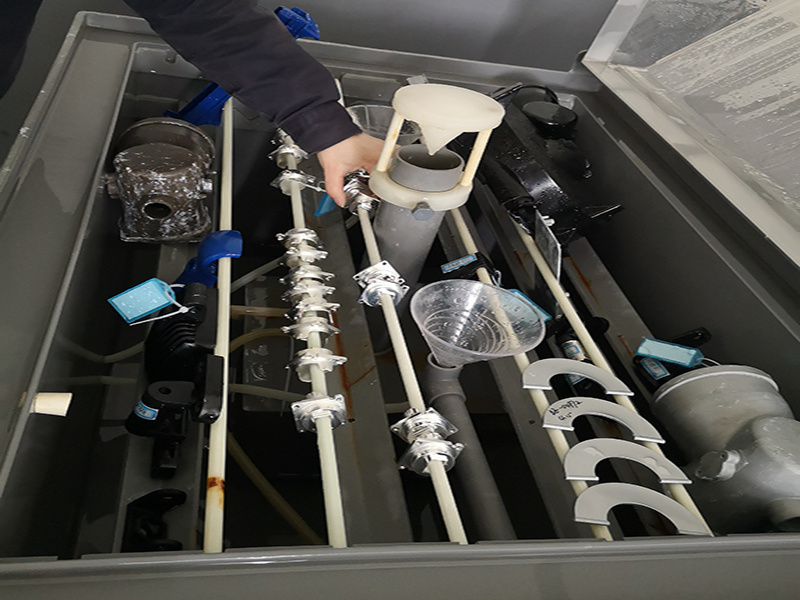

Summarize: 1. Before processing, it is necessary to detect the hardness of the body, stretch the test rod, and confirm that it is qualified before processing 2. Castings are tested for Brinell hardness according to ISO 6506-1, and the control range is above 85HB 3. The castings have been inspected by radiographs and conform to the third-level standard of ISO10049 4. The thickness of the coating must be 80-100 microns 5. Castings are subjected to salt spray test for 24 hours according to is09227 / astm b117, to ensure that no red rust is observed at the end of the salt spray test, once for each batch The spray masking tool needs to be re-customized
